MG-300 · Spare parts
Sorting Grapple — Open parts catalogue.

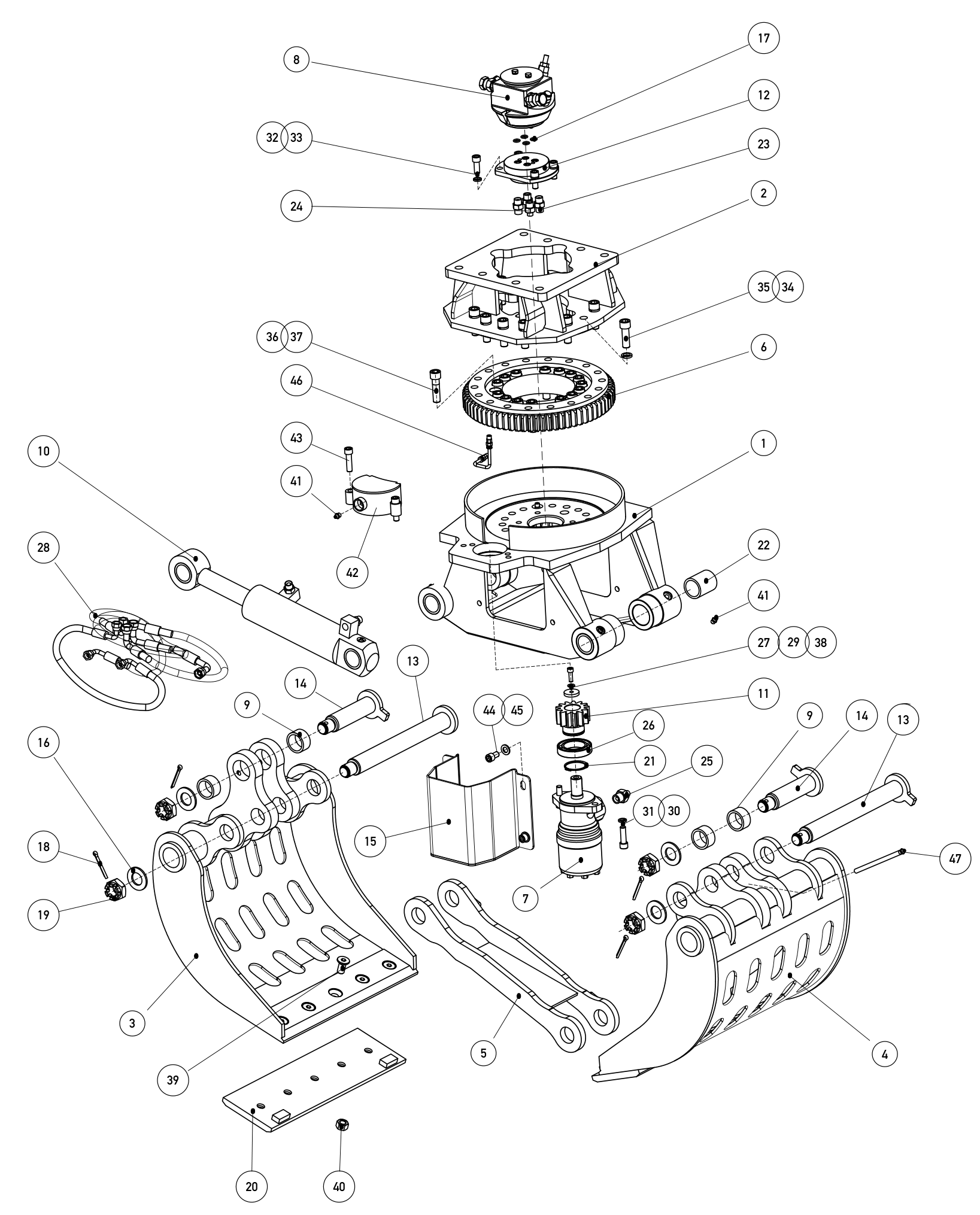

General assembly
Swivel joint (C.O.D.) · pos. 8
Hydraulic cylinder · pos. 10
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
MG-300 · General assembly · 47/47 positions
−
100%
+
⛶
ILLUS
PART NUMBER
DESCRIPTION
QTY
UNIT
REMARKS
#1
MG-300-01-001
FRAME, WELDED
1
pcs
#2
MG-300-01-002
ROTATOR FRAME COVER
1
pcs
#3
MG-300-01-003
GRAPPLE SHELL, LH
1
pcs
#4
MG-300-01-004
GRAPPLE SHELL, RH
1
pcs
#5
MG-300-04-001
LINKAGE ASSY
1
pcs
#6
MG-300-02-001
SLEWING RING
1
pcs
011.20.250.011.100F2
#7
MG-300-02-002
HYDRAULIC MOTOR
1
pcs
255250A6312BAAAA
#8
MG-450-02-003
HYDRAULIC CENTER JOINT ASSEMBLY
1
pcs
see separate chapter
#9
MG-300-02-004
BEARING BUSH
4
pcs
Ø40XØ50-25
#10
MG-300-03-001
CYLINDER ASSY
1
pcs
see separate chapter
#11
MG-300-02-005
PINION
1
pcs
#12
MG-300-03-002
CENTER JOINT MANIFOLD BLOCK
1
pcs
#13
MG-300-04-002
MAIN PIN
2
pcs
#14
MG-300-04-003
LINK PIN
2
pcs
#15
MG-300-01-005
MOTOR GUARD
1
pcs
#16
MG-300-05-001
WASHER
4
pcs
#17
MG-300-06-001
O-RING
4
pcs
Ø11.8X2.4
#18
MG-300-05-002
COTTER PIN
4
pcs
Ø6.3X50
#19
MG-300-05-003
CASTLE NUT
4
pcs
M30X2
#20
MG-300-01-006
WEAR BLADE, REPLACEABLE
2
pcs
#21
MG-300-05-004
CIRCLIP, SHAFT
1
pcs
#22
MG-300-02-006
BEARING BUSH
4
pcs
Ø40XØ50-60
#23
MG-300-07-001
ADAPTOR
2
pcs
#24
MG-300-07-002
ADAPTOR
2
pcs
#25
MG-300-07-003
ADAPTOR
2
pcs
#26
MG-300-02-007
BALL BEARING, DEEP GROOVE
1
pcs
6010-2Z
#27
MG-300-05-005
WASHER
1
pcs
#28
MG-300-03-003
HOSE KIT, HYDRAULIC
1
set
#29
MG-300-05-006
SPRING LOCK WASHER
1
pcs
M8
#30
MG-300-05-007
SCREW, HEX SOCKET HEAD CAP
2
pcs
#31
MG-300-05-008
SPRING LOCK WASHER
2
pcs
M12
#32
MG-300-05-009
SCREW, HEX SOCKET HEAD CAP
4
pcs
#33
MG-300-05-010
PLAIN WASHER
4
pcs
M12
#34
MG-300-05-011
SCREW, HEX SOCKET HEAD CAP
18
pcs
#35
MG-300-05-012
SPRING LOCK WASHER
18
pcs
M16
#36
MG-300-05-013
SCREW, HEX SOCKET HEAD CAP
16
pcs
#37
MG-300-05-014
SPRING LOCK WASHER
16
pcs
M16
#38
MG-300-05-015
SCREW, HEX SOCKET HEAD CAP
1
pcs
#39
MG-300-05-016
ALLEN SCREW, CSK HEAD
10
pcs
#40
MG-300-05-017
HEX NUT
10
pcs
#41
MG-300-08-001
GREASE NIPPLE
9
pcs
M10X1
#42
MG-300-01-007
GEAR GUARD
1
pcs
#43
MG-300-05-018
SCREW, HEX SOCKET HEAD CAP
2
pcs
#44
MG-300-05-019
SCREW, HEX SOCKET HEAD CAP
4
pcs
#45
MG-300-05-020
PLAIN WASHER
4
pcs
M12
#46
MG-300-08-002
GREASE PIPE
1
pcs
#47
MG-300-08-003
GREASE PIPE, EXTENDED
1
pcs
47 parts · MG-300-PL-EN-01
