Demolition Pulveriser — Open parts catalogue.

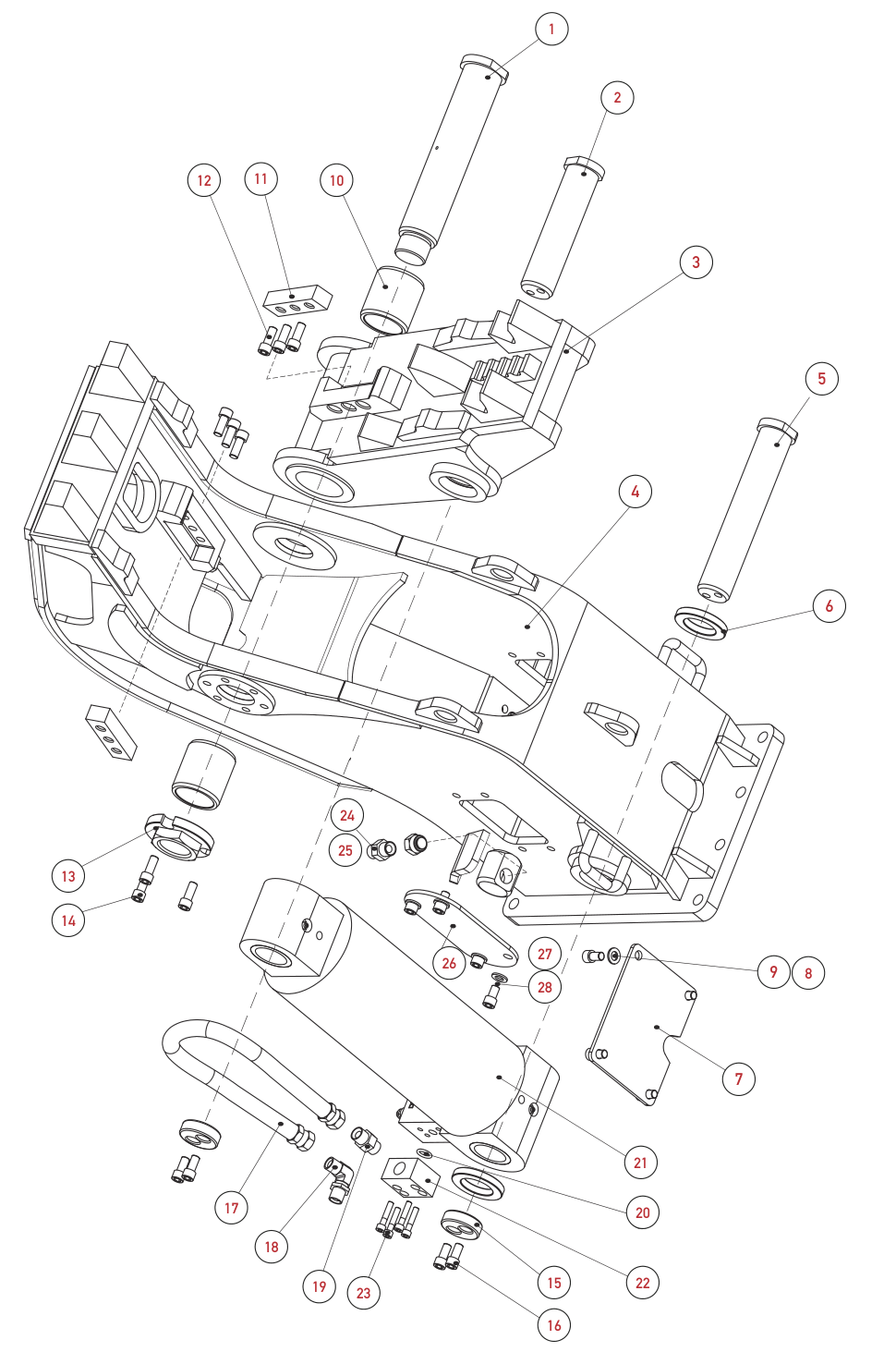

General assembly

12345678910111213141516171819202122232425262728

DP-06 · General assembly · 28/28 positions−100%+⛶

ILLUSPART NUMBERDESCRIPTIONQTYUNITREMARKS

• #1DP-06-01-001
  MAIN BODY, WELDED ASSY
  1pcs
• #2DP-06-04-001
  BOLT
  1pcs
• #3DP-06-04-002
  BOLT
  1pcs
• #4DP-06-01-002
  JAW SET
  1pcs
• #5DP-06-03-001
  CYLINDER SHAFT
  1pcs
• #6DP-06-04-003
  WASHER
  2pcs
• #7DP-06-01-003
  COVER
  1pcs
• #8DP-06-05-001
  SCREW, HEX SOCKET HEAD CAP
  4pcs
• #9DP-06-05-002
  WASHER
  4pcs
• #10DP-06-04-004
  BEARING BUSH
  2pcs
• #11DP-06-01-004
  BLADE
  2pcs
• #12DP-06-05-003
  SCREW, HEX SOCKET HEAD CAP
  6pcs
• #13DP-06-05-004
  HEX NUT
  1pcs
• #14DP-06-05-005
  SCREW, HEX SOCKET HEAD CAP
  3pcs
• #15DP-06-04-005
  COTTER PIN
  2pcs
• #16DP-06-05-006
  SCREW, HEX SOCKET HEAD CAP
  4pcs
• #17DP-06-07-001
  HOSE, HYDRAULIC
  2pcs
• #18DP-06-07-002
  ADAPTOR
  2pcsG1/2
• #19DP-06-07-003
  ADAPTOR
  2pcsG1/2
• #20DP-06-06-001
  O-RING
  2pcs
• #21DP-06-03-002
  CYLINDER
  1pcs
• #22DP-06-01-005
  BLOCK
  1pcs
• #23DP-06-05-007
  SCREW, HEX SOCKET HEAD CAP
  8pcs
• #24DP-06-07-004
  PLUG
  2pcsG1/2
• #25DP-06-07-005
  ADAPTOR
  2pcsG1/2
• #26DP-06-01-006
  COVER
  2pcs
• #27DP-06-05-008
  SCREW, HEX SOCKET HEAD CAP
  8pcs
• #28DP-06-05-009
  WASHER
  8pcs

28 parts · DP-06-BOM-0010 selected
