Demolition Pulveriser — Open parts catalogue.

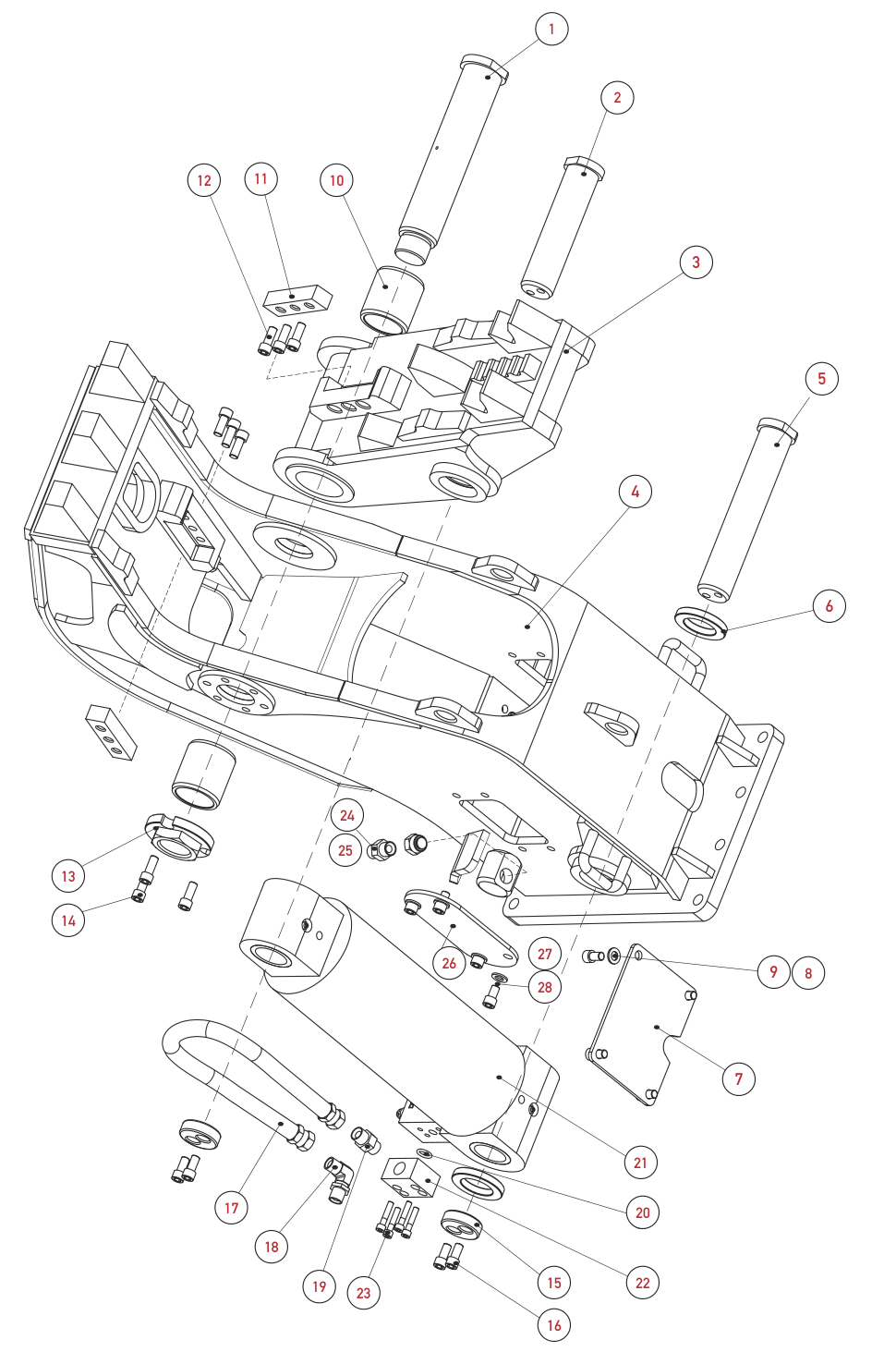

General assembly

12345678910111213141516171819202122232425262728

DP-03 · General assembly · 28/28 positions−100%+⛶

ILLUSPART NUMBERDESCRIPTIONQTYUNITREMARKS

• #1DP-03-01-001
  MAIN BODY, WELDED ASSY
  1pcs
• #2DP-03-04-001
  BOLT
  1pcs
• #3DP-03-04-002
  BOLT
  1pcs
• #4DP-03-01-002
  JAW SET
  1pcs
• #5DP-03-03-001
  CYLINDER SHAFT
  1pcs
• #6DP-03-04-003
  WASHER
  2pcs
• #7DP-03-01-003
  COVER
  1pcs
• #8DP-03-05-001
  SCREW, HEX SOCKET HEAD CAP
  4pcs
• #9DP-03-05-002
  WASHER
  4pcs
• #10DP-03-04-004
  BEARING BUSH
  2pcs
• #11DP-03-01-004
  BLADE
  2pcs
• #12DP-03-05-003
  SCREW, HEX SOCKET HEAD CAP
  6pcs
• #13DP-03-05-004
  HEX NUT
  1pcs
• #14DP-03-05-005
  SCREW, HEX SOCKET HEAD CAP
  3pcs
• #15DP-03-04-005
  COTTER PIN
  2pcs
• #16DP-03-05-006
  SCREW, HEX SOCKET HEAD CAP
  4pcs
• #17DP-03-07-001
  HOSE, HYDRAULIC
  2pcs
• #18DP-03-07-002
  ADAPTOR
  2pcsG1/2
• #19DP-03-07-003
  ADAPTOR
  2pcsG1/2
• #20DP-03-06-001
  O-RING
  2pcs
• #21DP-03-03-002
  CYLINDER
  1pcs
• #22DP-03-01-005
  BLOCK
  1pcs
• #23DP-03-05-007
  SCREW, HEX SOCKET HEAD CAP
  8pcs
• #24DP-03-07-004
  PLUG
  2pcsG1/2
• #25DP-03-07-005
  ADAPTOR
  2pcsG1/2
• #26DP-03-01-006
  COVER
  2pcs
• #27DP-03-05-008
  SCREW, HEX SOCKET HEAD CAP
  8pcs
• #28DP-03-05-009
  WASHER
  8pcs

28 parts · DP-03-BOM-0010 selected
