| # | PART NUMBER | DESCRIPTION | QTY | REMARKS |
|---|---|---|---|---|
| 1 | MG-75-01-001 | MAIN FRAME, WELDED ASSY | 1 | |
| 2 | MG-75-01-005 | ROTATOR FRAME, WELDED | 1 | |
| 3 | MG-75-01-002 | GRAPPLE SHELL, LH | 1 | |
| 4 | MG-75-01-003 | GRAPPLE SHELL, RH | 1 | |
| 5 | MG-75-04-001 | LINKAGE ASSY | 1 | |
| 6 | MG-75-02-009 | SLEWING RING | 1 | |
| 7 | MG-75-02-001 | HYDRAULIC MOTOR | 1 | |
| 8 | MG-75-02-006 | HYDRAULIC CENTER JOINT ASSEMBLY | 1 | see separate chapter |
| 9 | MG-75-03-001 | CYLINDER | 1 | see separate chapter |
| 10 | MG-75-04-005 | BEARING BUSH | 4 | |
| 11 | MG-75-07-003 | GREASE NIPPLE | 1 | M10×1 |
| 12 | MG-75-07-007 | HOSE, HYDRAULIC | 1 | |
| 13 | MG-75-04-004 | BOLT | 2 | |
| 14 | MG-75-04-002 | BOLT | 1 | |
| 15 | MG-75-04-003 | BOLT | 1 | |
| 16 | MG-75-04-007 | WASHER | 2 | M20 |
| 17 | MG-75-02-003 | LOCK NUT | 2 | M20 |
| 18 | MG-75-04-006 | WASHER | 2 | |
| 19 | MG-75-04-008 | SPRING PIN | 2 | Ø8×40 |
| 20 | MG-75-01-004 | WEAR BLADE, REPLACEABLE | 2 | |
| 21 | MG-75-07-002 | REDUCER ADAPTOR | 2 | G3/8–G1/4 |
| 22 | MG-75-04-009 | BEARING BUSH | 4 | |
| 23 | MG-75-02-004 | RELIEF VALVE ASSEMBLY | 1 | |
| 24 | MG-75-07-012 | REDUCER ADAPTOR | 2 | G1/2–G3/8 |
| 25 | MG-75-07-009 | PLUG | 2 | G3/8 |
| 26 | MG-75-05-001 | SCREW, HEX SOCKET HEAD CAP | 2 | M12×40 |
| 27 | MG-75-05-002 | NORD-LOCK WASHER | 2 | M12 |
| 28 | MG-75-04-010 | SNAP RING | 1 | D40 |
| 29 | MG-75-02-005 | BEARING | 1 | 6208-2Z |
| 30 | MG-75-02-002 | PINION | 1 | |
| 31 | MG-75-02-008 | ANTI-ROTATION PLATE | 1 | |
| 32 | MG-75-05-003 | SCREW, HEX SOCKET COUNTERSUNK HEAD | 1 | M8×25 |
| 33 | MG-75-05-004 | SCREW, HEX SOCKET HEAD CAP | 4 | M8×40 |
| 34 | MG-75-05-005 | NORD-LOCK WASHER | 4 | M8 |
| 35 | MG-75-04-011 | LOCATING PIN | 1 | Ø10×30 |
| 36 | MG-75-05-006 | SCREW, HEX SOCKET HEAD CAP | 6 | M12×40 |
| 37 | MG-75-05-007 | NORD-LOCK WASHER | 6 | M12 |
| 38 | MG-75-05-008 | SCREW, HEX SOCKET HEAD CAP | 12 | M10×40 |
| 39 | MG-75-04-012 | LOCK WASHER | 12 | M12 |
| 40 | MG-75-06-001 | O-RING | 2 | Ø11.8×2.4 |
| # | PART NUMBER | DESCRIPTION | QTY | REMARKS |
|---|---|---|---|---|

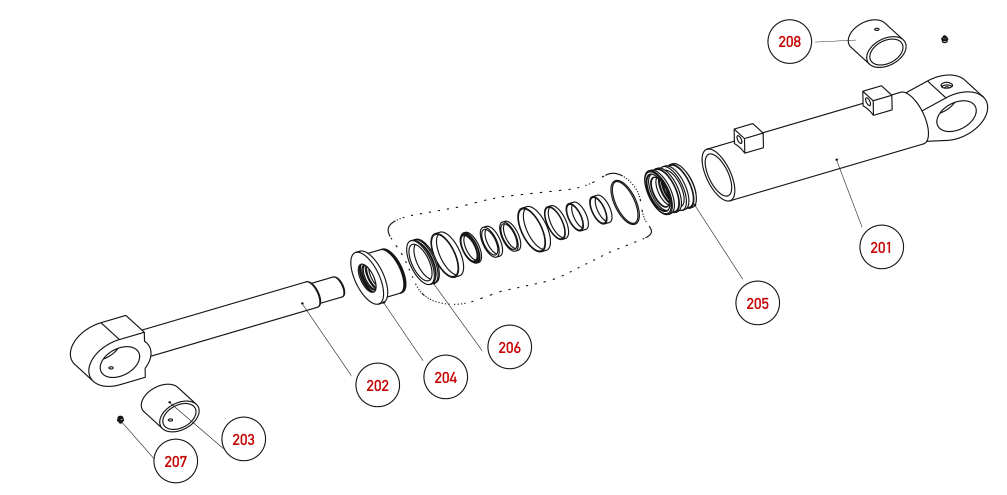

| — | MG-75-03-001 | CYLINDER | 1 | |
| 201 | MG-75-03-201 | CYLINDER HOUSING | 1 | |
| 202 | MG-75-03-202 | PISTON ROD | 1 | |
| 203 | MG-75-03-203 | BEARING BUSH | 1 | Ø30×Ø40-32 |
| 204 | MG-75-03-204 | ROD GUIDE | 1 | |
| 205 | MG-75-03-205 | PISTON | 1 | |
| 206 | MG-75-03-206 | SEAL KIT | 1 | |
| 207 | MG-75-03-207 | GREASE NIPPLE | 1 | |
| 208 | MG-75-03-208 | BEARING BUSH | 1 | Ø30×Ø40-35 |
| # | PART NUMBER | DESCRIPTION | QTY | REMARKS |
|---|---|---|---|---|

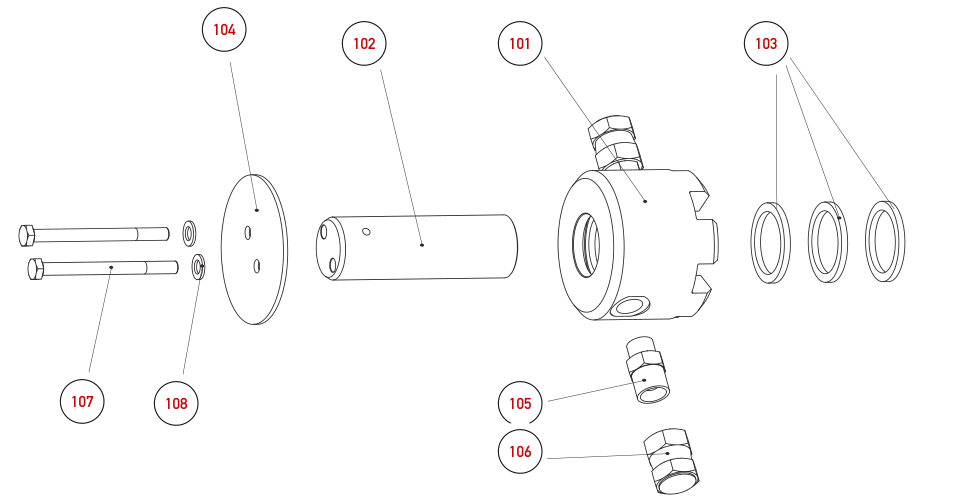

| — | MG-75-02-006 | HYDRAULIC CENTER JOINT ASSEMBLY | 1 | |
| 101 | MG-75-02-101 | CENTER JOINT HOUSING | 1 | |
| 102 | MG-75-02-102 | CENTER JOINT ROTOR | 2 | |
| 103 | MG-75-02-103 | SEAL KIT | 1 | |
| 104 | MG-75-02-104 | CENTER JOINT COVER | 1 | |
| 105 | MG-75-02-105 | ADAPTOR | 2 | |
| 106 | MG-75-02-106 | PLUG | 2 | |
| 107 | MG-75-02-107 | HEX BOLT | 1 | |
| 108 | MG-75-02-108 | NORD-LOCK WASHER | 1 |
