MG-500 - Spare Parts Catalogue

General assembly

#	PART NUMBER	DESCRIPTION	QTY	REMARKS
1	MG-500-01-001	MAIN FRAME, WELDED ASSY	1
2	MG-500-01-005	ROTATOR FRAME, WELDED	1
3	MG-500-01-002	GRAPPLE SHELL, LH	1
4	MG-500-01-003	GRAPPLE SHELL, RH	1
5	MG-500-04-001	LINKAGE ASSY	1
6	MG-500-02-009	SLEWING RING	1
7	MG-1050-02-001	HYDRAULIC MOTOR	1
8	MG-500-02-006	HYDRAULIC CENTER JOINT ASSEMBLY	1	see separate chapter
9	MG-500-04-005	BEARING BUSH	4	Ø45×Ø55-35
10	MG-450-03-001	CYLINDER COMPLETE	1	see separate chapter
11	MG-1050-02-002	PINION	1
12	MG-500-02-008	ANTI-ROTATION PLATE	1
13	MG-500-04-004	BOLT	2
14	MG-500-04-002	BOLT	2
15	MG-500-04-008	COTTER PIN	1
16	MG-500-04-007	WASHER	4
17	MG-500-02-003	LOCK NUT, MOTOR	1
18	MG-500-04-009	COTTER PIN	4
19	MG-500-04-010	SLOTTED NUT	4
20	MG-450-01-006	WEAR BLADE, REPLACEABLE	2
21	MG-500-07-003	GREASE PORT	1
22	MG-500-04-006	BEARING BUSH	4	Ø45×Ø55-60
23	MG-500-07-001	ADAPTOR	2
24	MG-500-07-009	PLUG	2
25	MG-500-07-015	ADAPTOR	2
26	MG-500-07-010	PLUG	2
27	MG-500-07-007	HOSE, HYDRAULIC	1
28	MG-500-07-008	HOSE, HYDRAULIC	1
29	MG-500-07-002	REDUCER ADAPTOR	6	G1/2(ED)–G3/8
30	MG-500-05-012	SCREW, HEX SOCKET HEAD CAP	4	M12×80
31	MG-500-05-011	NORD-LOCK WASHER	4	M12
32	MG-500-05-013	SCREW, HEX SOCKET HEAD CAP	4	M12×25
33	MG-500-05-014	NORD-LOCK WASHER	4	M12
34	MG-500-05-006	SCREW, HEX SOCKET HEAD CAP	40	M16×70
35	MG-500-05-005	NORD-LOCK WASHER	40	M16
36	MG-500-05-001	SCREW, HEX SOCKET HEAD CAP	2	M12×25
37	MG-500-05-002	NORD-LOCK WASHER	2	M12
38	MG-500-07-013	GREASE NIPPLE	1
39	MG-450-05-016	SCREW, HEX SOCKET HEAD CAP	12	M16×35, ISO 4762
40	MG-450-05-017	HEX NUT	12	M16, ISO 4032
41	MG-500-07-014	GREASE NIPPLE	1
42	MG-1050-02-007	RELIEF VALVE ASSEMBLY	1	Set at 14 bar; see separate chapter
43	MG-500-07-016	REDUCER ADAPTOR	4
44	MG-500-05-015	SCREW, HEX SOCKET HEAD CAP	2	M10×30
45	MG-500-05-016	WASHER, EXTERNAL SERRATED LOCK	2	M10

Hydraulic Center Joint Assembly · pos. 8

#	PART NUMBER	DESCRIPTION	QTY
—	MG-500-02-006	HYDRAULIC CENTER JOINT ASSEMBLY	1
101	MG-500-02-101	CENTER JOINT ROTOR	1
102	MG-500-02-102	CENTER JOINT STATOR	1
103	MG-500-02-103	CENTER JOINT COVER	1
104	MG-500-02-104	WASHER	2
105	MG-500-02-105	ADAPTOR	4
106	MG-500-02-106	SEAL KIT	1
107	MG-500-02-107	SCREW, HEX SOCKET HEAD CAP	2

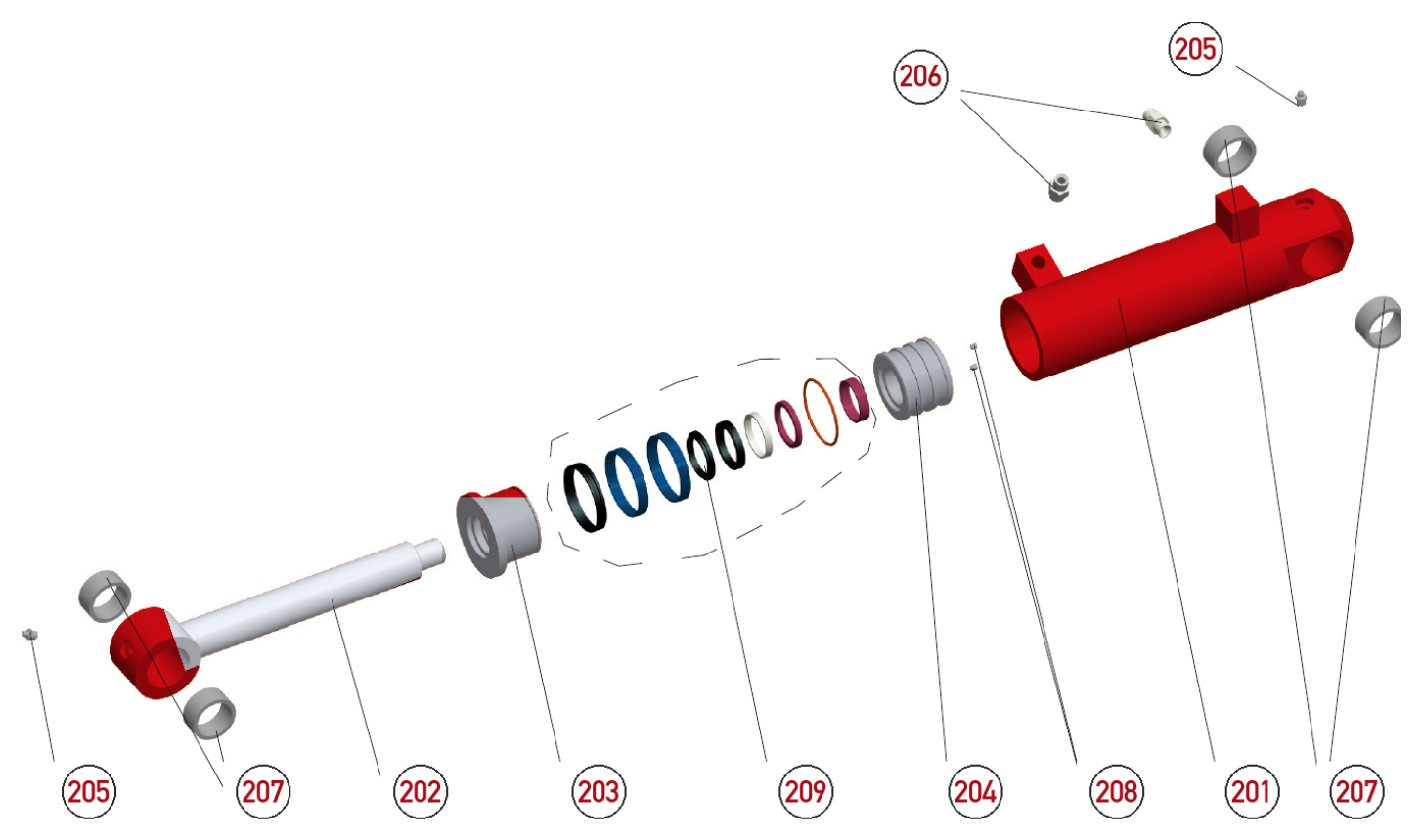

Hydraulic cylinder · pos. 10

#	PART NUMBER	DESCRIPTION	QTY	REMARKS
—	MG-450-03-001	CYLINDER ASSY	1	assembly
201	MG-450-03-201	CYLINDER BODY	1
202	MG-450-03-202	ROD	1
203	MG-450-03-203	COVER	1
204	MG-450-03-204	PISTON	1
205	MG-450-03-205	GREASE NIPPLE	2	M10 × 1.0
206	MG-450-03-206	ADAPTER	2	BSP G3/8
207	MG-450-03-207	BEARING BUSH (CYLINDER)	4	Ø45 × Ø55 × L25
208	MG-450-03-208	PLUG	1
209	MG-450-03-209	SEAL KIT	1

Relief Valve Assembly

#	PART NUMBER	DESCRIPTION	QTY	REMARKS
—	MG-1050-02-007	RELIEF VALVE ASSEMBLY	1
1	MG-1050-02-301	VALVE BLOCK	1
2	MG-1050-02-302	RELIEF VALVE	1	LBRV2-10-30
3	MG-1050-02-303	G1/4 PLUG	2	4BN-04WD
4	MG-1050-02-304	G1/8 PLUG	3	4BN-02WD
5	MG-1050-02-305	G1/2-L57 HOLLOW BOLT	2	STANDARD
6	MG-1050-02-306	G1/2 BONDED SEAL	4	STANDARD
