| 1 | MG-1500-01-001 | WELDED MAIN FRAME | 1 | |
| 2 | MG-1500-01-002 | SHELL, LEFT | 1 | Short lever |
| 3 | MG-1500-01-003 | SHELL, RIGHT | 1 | Long lever |
| 4 | MG-1500-04-001 | WELDED LINKAGE CONSTRUCTION | 1 | |
| 5 | MG-1500-04-002 | MAIN HINGE PIN | 2 | |
| 6 | MG-1500-04-003 | BEARING BUSH | 2 | Dia 60 x Dia 70 x 45 |
| 7 | MG-1500-04-004 | LINKAGE AXIS, LOWER (SHORT) | 1 | |
| 8 | MG-1500-02-001 | SLEWING BEARING | 1 | |
| 9 | MG-1500-01-004 | WELDED ROTATOR FRAME | 1 | |
| 10 | MG-1500-06-001 | GASKET | 1 | Slewing bearing face |
| 11 | MG-1500-04-005 | BEARING BUSH | 2 | |
| 12 | MG-1500-02-002 | HYDRAULIC MOTOR | 2 | |
| 13 | MG-1500-07-001 | GREASE NIPPLE SET | 1 | M10 x 1.0; contents 13 pcs |
| 14 | MG-1500-04-006 | END CAP | 2 | |

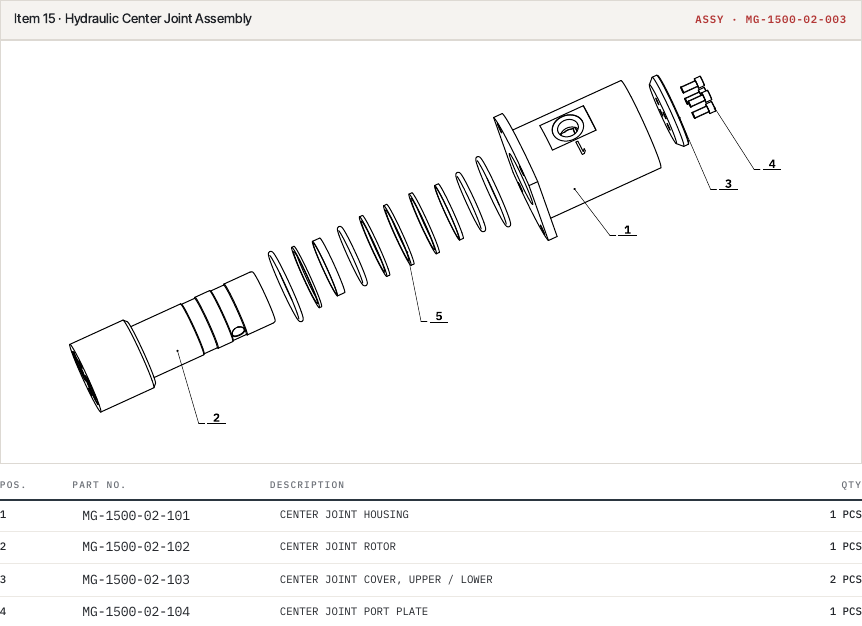

| 15 | MG-1500-02-003 | HYDRAULIC CENTER JOINT ASSEMBLY | 1 | see separate chapter |
| 16 | MG-1500-02-004 | GEAR, MOTOR PINION | 2 | |
| 17 | MG-1500-02-005 | NUT, PINION RETAINING | 2 | For item 16 |
| 18 | MG-1500-02-006 | PLATE | 1 | |

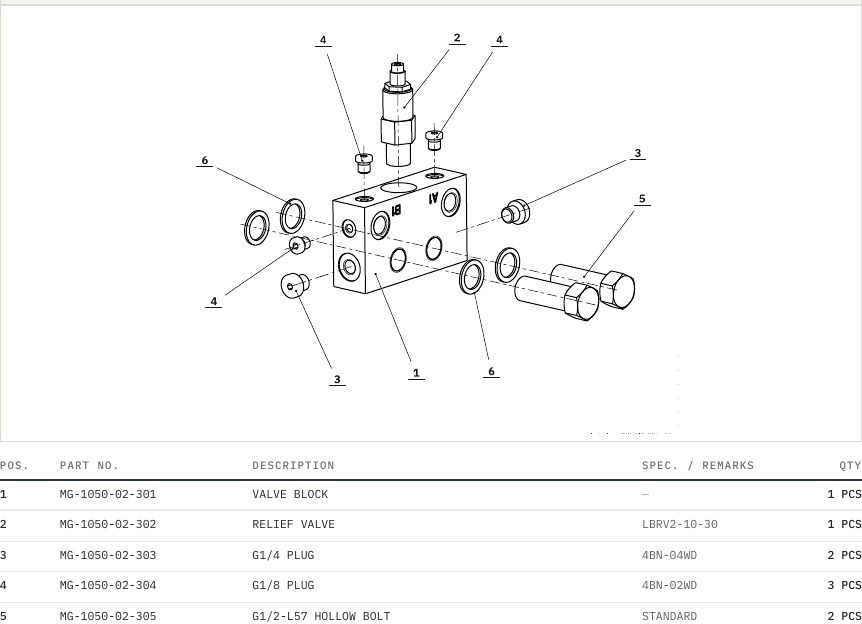

| 19 | MG-1050-02-007 | RELIEF VALVE ASSEMBLY | 1 | Set at 14 bar; see separate chapter |
| 20 | MG-1500-04-007 | BEARING BUSH | 2 | Dia 60 x Dia 70 x 70 |
| 21 | MG-1500-04-008 | BEARING BUSH | 1 | Dia 60 x Dia 70 x 70 |
| 22 | MG-1500-06-002 | WATERPROOF SEALING RING | 1 | |
| 23 | MG-1500-04-009 | BEARING BUSH | 4 | Dia 60 x Dia 70 x 50 |
| 23A | MG-1500-04-010 | BEARING BUSH | 2 | Dia 60 x Dia 70 x 80 |
| 24 | MG-1500-05-001 | DISC SPRING | 2 | For item 25 |
| 25 | MG-1500-05-002 | HEXAGON SLOTTED NUT | 2 | M48 |
| 26 | MG-1500-04-016 | LINKAGE AXIS, UPPER (LEFT) | 1 | |
| 26A | MG-1500-04-017 | LINKAGE AXIS, UPPER (RIGHT) | 1 | |

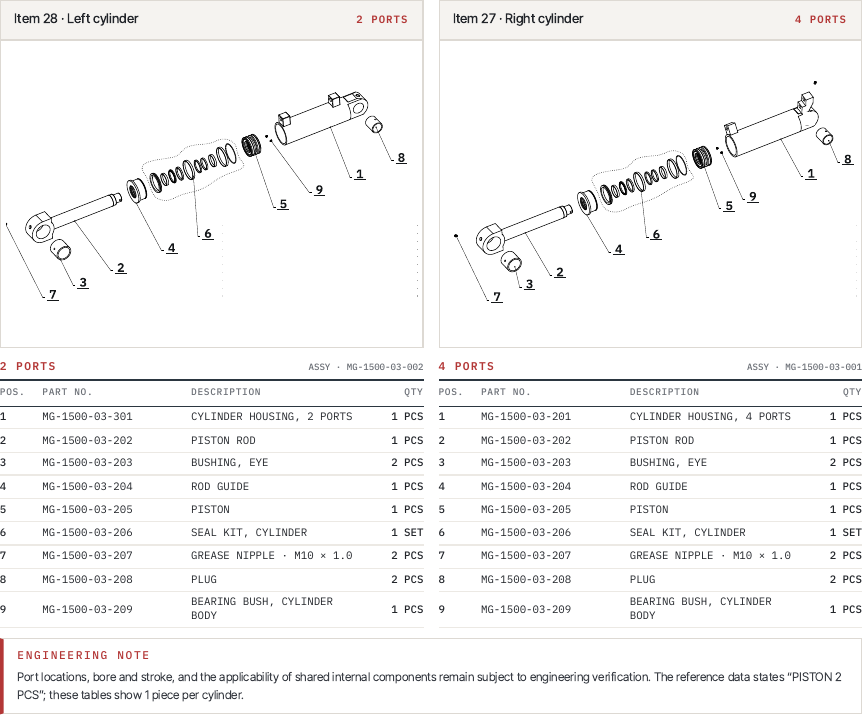

| 27 | MG-1500-03-001 | HYDRAULIC CYLINDER, 4 PORTS | 1 | see separate chapter |
| 28 | MG-1500-03-002 | HYDRAULIC CYLINDER, 2 PORTS | 1 | see separate chapter |
| 29 | MG-1500-07-002 | GREASE FITTING, ANGLED | 1 | |
| 30 | MG-1500-07-003 | HOSE KIT, COMPLETE | 1 | |
| 31 | MG-1500-07-004 | ADAPTER, STRAIGHT - MOTOR | 2 | |
| 32 | MG-1500-07-005 | ADAPTER, ELBOW 90 DEG - MOTOR | 2 | |
| 33 | MG-1500-07-006 | ADAPTER, STRAIGHT - CENTER JOINT | 8 | |
| 34 | MG-1500-02-008 | SEAL KIT, MOTOR | 2 | 1 set per motor |
| 35 | MG-1500-06-003 | DUST SEAL | 1 | |
| 36 | MG-1500-04-011 | COTTER PIN | 2 | Dia 8 x 80 |
| 37 | MG-1050-02-007 | RELIEF VALVE ASSEMBLY | 1 | Set at 14 bar; see separate chapter |
| 38 | MG-1500-07-007 | ADAPTER, ELBOW 90 DEG - CYLINDER | 6 | |
| 39 | MG-1500-07-008 | ADAPTER, TEE | 2 | |
| 40 | MG-1500-07-009 | ADAPTER, BULKHEAD | 2 | |
| 41 | MG-1500-01-005 | COVER PLATE | 1 | |
| 42 | MG-1500-07-010 | PLUG / TEST POINT | 2 | |
| 43 | MG-1500-05-003 | NORD-LOCK WASHER | 1 | |
| 44 | MG-1500-05-004 | HEX BOLT | 1 | |
| 45 | MG-1500-05-005 | SELF-LOCKING NUT | 1 | M24 |
| 46 | MG-1500-05-006 | NORD-LOCK WASHER SET | 1 | D12; contents 12 pcs |
| 47 | MG-1500-05-007 | SOCKET CSK SCREW SET | 1 | M12 x 60, 10.9; contents 8 pcs |
| 48 | MG-1500-05-008 | DISC SPRING SET | 1 | D10; contents 2 pcs |
| 49 | MG-1500-05-009 | SOCKET CSK SCREW SET | 1 | M10 x 25, 10.9; contents 2 pcs |
| 50 | MG-1500-05-010 | SOCKET CSK SCREW SET | 1 | M12 x 35, 10.9; contents 4 pcs |
| 51 | MG-1500-04-012 | HEX BOLT | 1 | M16 x 150; contents 2 pcs |
| 52 | MG-1500-05-011 | NORD-LOCK WASHER SET - SLEWING BEARING | 1 | D16; contents 48 pcs |
| 53 | MG-1500-05-012 | SOCKET CSK SCREW SET - SLEWING BEARING | 1 | M16 x 90, 10.9; contents 48 pcs |
| 54 | MG-1500-05-013 | DISC SPRING SET | 1 | D12; contents 4 pcs |
| 55 | MG-1500-05-014 | HEX BOLT SET | 1 | M12 x 30, 10.9; contents 10 pcs |
| 56 | MG-1500-04-013 | SELF-LOCKING NUT | 1 | M16; contents 2 pcs |
| 57 | MG-1500-04-014 | DOWEL PIN SET | 1 | D12 x 40; contents 2 pcs |
| 58 | MG-1500-05-015 | SOCKET CSK SCREW SET - WEAR BLADE | 1 | M20 x 45, 12.9; contents 20 pcs |
| 59 | MG-1500-07-011 | HOSE KIT, COMPLETE | 1 | |
| 60 | MG-1500-05-016 | NUT SET - WEAR BLADE | 1 | M24, for item 58; contents 20 pcs |
| 61 | MG-1500-04-015 | COTTER PIN | 2 | Dia 4 x 70 |
| 62 | MG-1500-01-006 | EXCHANGEABLE WEAR BLADE | 2 | With items 58 / 60 |
