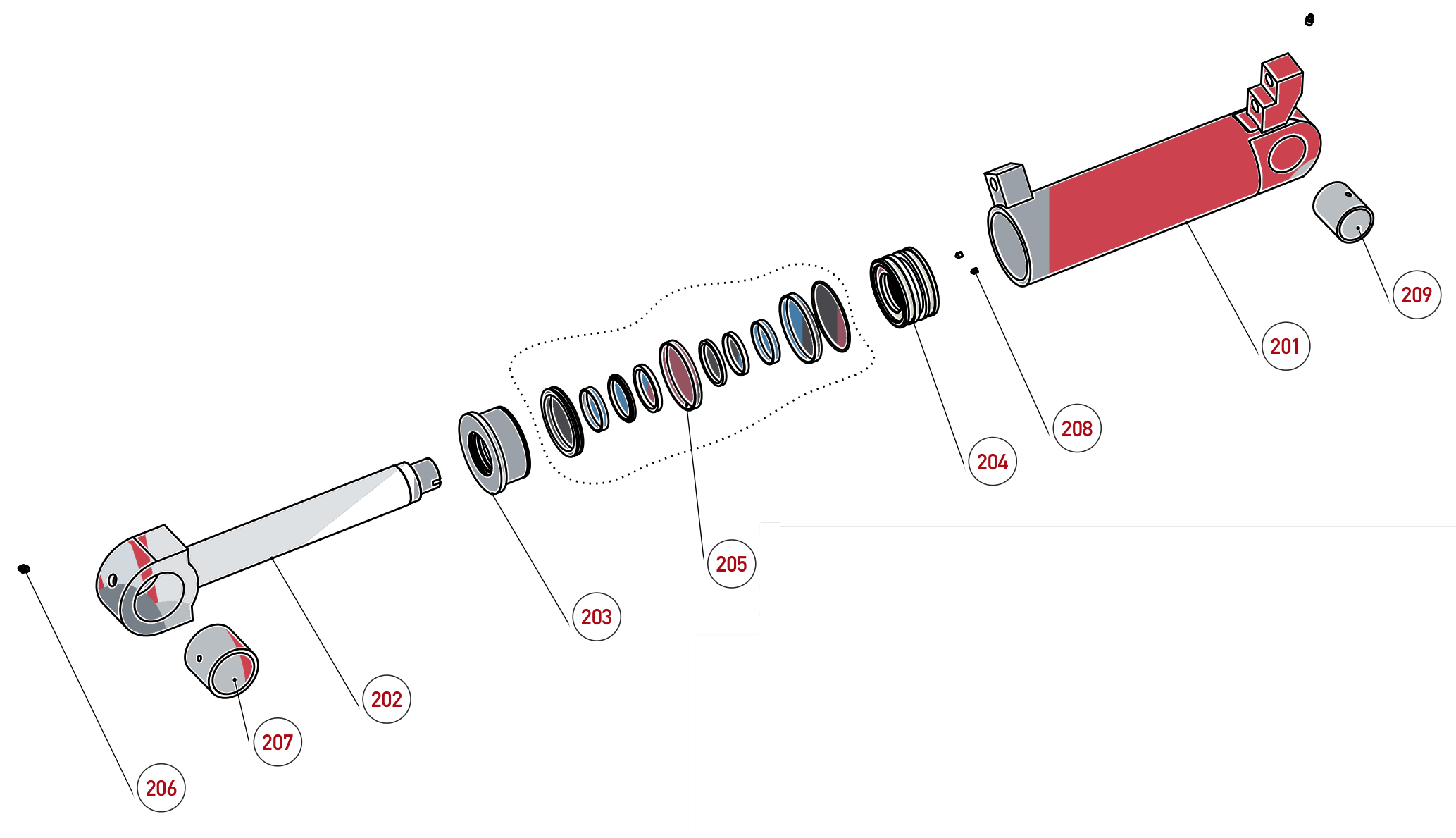

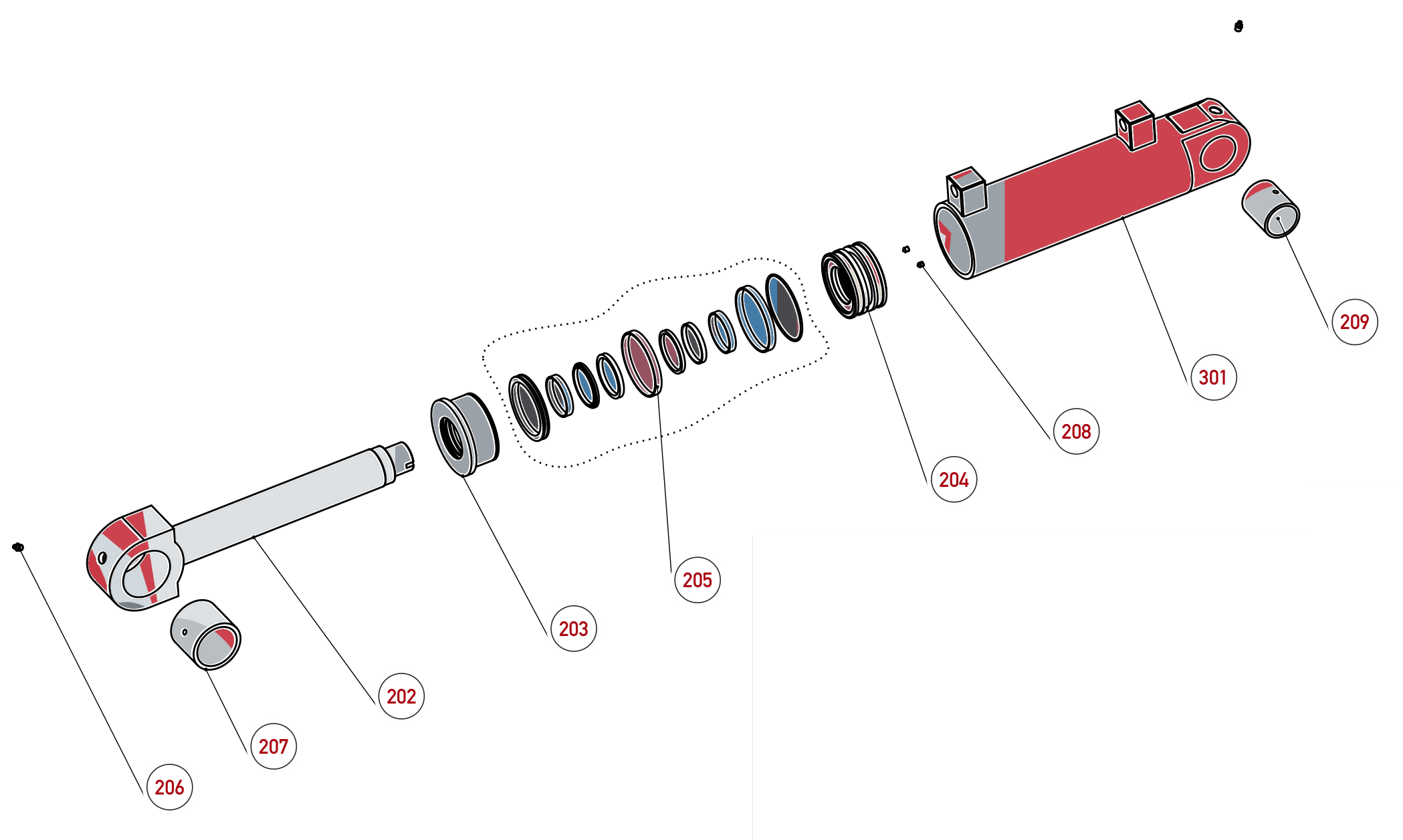

| 1 | MG-1400-01-001 | MAIN FRAME, WELDED ASSY | 1 | |
| 2 | MG-1400-04-001 | BEARING BUSH | 2 | |
| 3 | MG-1400-04-002 | BEARING BUSH | 4 | |
| 4 | MG-1400-06-001 | V-RING DUST SEAL | 1 | VA180 |
| 5 | MG-1400-01-002 | GRAPPLE SHELL, RH | 1 | |
| 6 | MG-1400-01-003 | GRAPPLE SHELL, LH | 1 | |
| 7 | MG-1400-01-004 | WEAR BLADE, REPLACEABLE | 2 | |
| 8 | MG-1400-04-003 | LINKAGE ASSY | 1 | |
| 9 | MG-1400-04-004 | BOLT | 2 | |
| 10 | MG-1400-03-001 | CYLINDER, TYPE 1 | 1 | see separate chapter |
| 11 | MG-1400-03-002 | CYLINDER, TYPE 2 | 1 | see separate chapter |
| 12 | MG-1400-01-005 | ROTATOR FRAME | 1 | |
| 13 | MG-1400-01-006 | COVER PLATE, GREASE PORT | 1 | |
| 14 | MG-1050-02-001 | HYDRAULIC MOTOR | 1 | |
| 15 | MG-1400-02-002 | PINION | 1 | |
| 16 | MG-1400-02-003 | LOCK NUT, MOTOR | 1 | |
| 17 | MG-1400-02-004 | MOTOR BUSHING | 1 | |
| 18 | MG-1050-02-007 | RELIEF VALVE ASSEMBLY | 1 | Set at 14 bar; see separate chapter |
| 19 | MG-1400-02-006 | MOTOR OIL SEAL | 1 | |
| 20 | MG-1400-04-005 | COTTER PIN | 1 | Ø4×50 |
| 21 | MG-1050-02-006 | HYDRAULIC CENTER JOINT ASSEMBLY | 1 | see separate chapter |
| 22 | MG-1400-07-001 | REDUCER ADAPTOR | 2 | G3/4–G1/2 |
| 23 | MG-1400-02-008 | ANTI-ROTATION PLATE | 1 | |
| 24 | MG-1400-05-001 | SCREW, HEX SOCKET HEAD CAP | 2 | M10×25 |
| 25 | MG-1400-05-002 | WASHER, EXTERNAL SERRATED LOCK | 2 | M10 |
| 26 | MG-1400-07-002 | ADAPTOR | 5 | G3/4 |
| 27 | MG-1400-07-003 | REDUCER ADAPTOR | 4 | G1/2(ED)–G3/8 |
| 28 | MG-1400-07-004 | GREASE NIPPLE | 1 | M10×1 |
| 29 | MG-1400-05-003 | WASHER, EXTERNAL SERRATED LOCK | 4 | M12 |
| 30 | MG-1400-05-004 | SCREW, HEX SOCKET HEAD CAP | 4 | M12×30 |
| 31 | MG-1400-02-009 | SLEWING RING | 1 | |
| 32 | MG-1400-07-005 | EXTENDED ADAPTOR | 1 | L90 |
| 33 | MG-1400-07-006 | 90° ELBOW | 2 | G3/4 |
| 34 | MG-1400-05-005 | NORD-LOCK WASHER | 48 | M16 |
| 35 | MG-1400-05-006 | SCREW, HEX SOCKET HEAD CAP | 48 | M16×90 |
| 36 | MG-1400-06-002 | DUST SEAL | 1 | |
| 37 | MG-1400-03-003 | CYLINDER LONG SHAFT | 1 | |
| 38 | MG-1400-03-004 | CYLINDER SHORT SHAFT | 1 | |
| 39 | MG-1400-03-005 | END CAP, CYLINDER SHORT SHAFT | 2 | |
| 40 | MG-1400-05-007 | SCREW, HEX SOCKET HEAD CAP | 1 | M12×210 |
| 41 | MG-1400-05-008 | LOCK NUT | 1 | M12 |
| 42 | MG-1400-07-007 | HOSE, HYDRAULIC | 1 | |
| 43 | MG-1400-07-008 | HOSE, HYDRAULIC | 1 | |
| 44 | MG-1400-05-009 | SCREW, HEX SOCKET COUNTERSUNK HEAD | 18 | M20×40 |
| 45 | MG-1400-05-010 | HEX NUT | 18 | M20 |
| 46 | MG-1400-05-011 | NORD-LOCK WASHER | 9 | M12 |
| 47 | MG-1400-05-012 | SCREW, HEX SOCKET HEAD CAP | 4 | M12×80 |
| 48 | MG-1400-05-013 | SCREW, HEX SOCKET HEAD CAP | 4 | M12×35 |
| 49 | MG-1400-04-006 | BEARING BUSH | 3 | |
| 50 | MG-1400-04-007 | WASHER, MAIN PIN | 2 | M36 |
| 51 | MG-1400-04-008 | SLOTTED NUT | 2 | M36×3 |
| 52 | MG-1400-07-009 | STRAIGHT ADAPTOR | 8 | G1/2 |
| 53 | MG-1400-07-010 | GREASE NIPPLE | 13 | M10×1 |
| 54 | MG-1400-04-009 | BEARING BUSH | 2 | |
| 55 | MG-1400-05-014 | HEX BOLT, NYLON INSERT LOCK NUT | 2 | M16×150 |
| 56 | MG-1400-04-011 | COTTER PIN | 2 | Ø6.3×65 |
| 57 | MG-1400-04-012 | LOCATING PIN | 2 | Ø12×40 |
| 58 | MG-1400-07-011 | PLUG | 2 | G3/4 |
| 59 | MG-1400-07-012 | PLUG | 2 | G1/2 |
