MG-100 - Spare Parts Catalogue

General assembly

#	PART NUMBER	DESCRIPTION	QTY	REMARKS
1	MG-100-01-001	MAIN FRAME, WELDED ASSY	1
2	MG-100-01-005	ROTATOR FRAME, WELDED	1
3	MG-100-01-002	GRAPPLE SHELL, LH	1
4	MG-100-01-003	GRAPPLE SHELL, RH	1
5	MG-100-04-001	LINKAGE ASSY	1
6	MG-75-02-009	SLEWING RING	1
7	MG-75-02-001	HYDRAULIC MOTOR	1
8	MG-75-02-006	HYDRAULIC CENTER JOINT ASSEMBLY	1	see separate chapter
9	MG-100-03-001	CYLINDER	1	see separate chapter
10	MG-75-04-005	BEARING BUSH	4
11	MG-100-07-003	GREASE NIPPLE	1	M10×1
12	MG-100-07-007	HOSE, HYDRAULIC	1
13	MG-100-04-004	BOLT	2
14	MG-100-04-002	BOLT	1
15	MG-100-04-003	BOLT	1
16	MG-100-04-007	WASHER	2	M20
17	MG-75-02-003	LOCK NUT	2	M20
18	MG-100-04-006	WASHER	2
19	MG-100-04-008	COTTER PIN	2	Ø8×40
20	MG-100-01-004	WEAR BLADE, REPLACEABLE	2
21	MG-100-07-002	REDUCER ADAPTOR	2	G3/8–G1/4
22	MG-75-04-009	BEARING BUSH	4
23	MG-75-02-004	RELIEF VALVE ASSEMBLY	1
24	MG-100-07-012	REDUCER ADAPTOR	2	G1/2–G3/8
25	MG-100-07-009	PLUG	2	G3/8
26	MG-100-05-001	SCREW, HEX SOCKET HEAD CAP	2	M12×40
27	MG-100-05-002	NORD-LOCK WASHER	2	M12
28	MG-100-04-010	SNAP RING	1	D40
29	MG-75-02-005	BEARING	1	6208-2Z
30	MG-75-02-002	PINION	1
31	MG-75-02-008	ANTI-ROTATION PLATE	1
32	MG-100-05-003	SCREW, HEX SOCKET COUNTERSUNK HEAD	1	M8×25
33	MG-100-05-004	SCREW, HEX SOCKET HEAD CAP	4	M8×40
34	MG-100-05-005	NORD-LOCK WASHER	4	M8
35	MG-100-04-011	LOCATING PIN	1	Ø10×30
36	MG-100-05-006	SCREW, HEX SOCKET HEAD CAP	6	M12×40
37	MG-100-05-007	NORD-LOCK WASHER	6	M12
38	MG-100-05-008	SCREW, HEX SOCKET HEAD CAP	12	M10×40
39	MG-100-04-012	LOCK WASHER	12	M12
40	MG-100-06-001	O-RING	2	Ø11.8×2.4

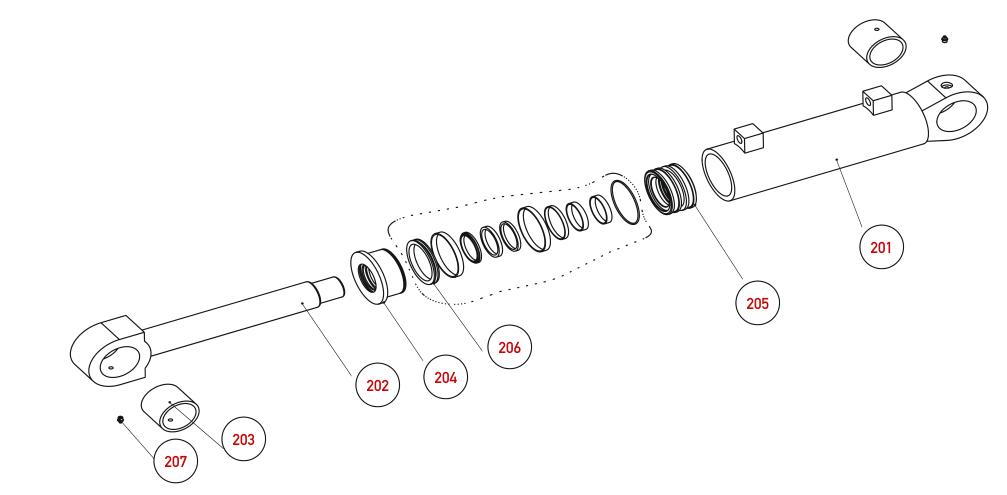

#	PART NUMBER	DESCRIPTION	QTY	REMARKS
—	MG-100-03-001	CYLINDER	1
201	MG-100-03-201	CYLINDER HOUSING	1
202	MG-100-03-202	PISTON ROD	1
203	MG-100-03-203	BEARING BUSH	2	Ø30×Ø40-40
204	MG-100-03-204	ROD GUIDE	1
205	MG-100-03-205	PISTON	1
206	MG-100-03-206	SEAL KIT	1
207	MG-100-03-207	GREASE NIPPLE	1

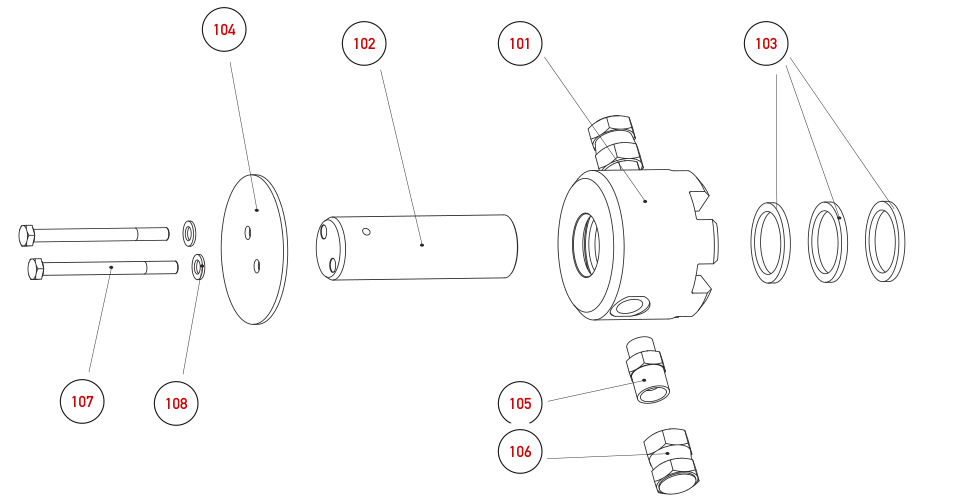

#	PART NUMBER	DESCRIPTION	QTY
—	MG-75-02-006	HYDRAULIC CENTER JOINT ASSEMBLY	1
101	MG-75-02-101	CENTER JOINT HOUSING	1
102	MG-75-02-102	CENTER JOINT ROTOR	2
103	MG-75-02-103	SEAL KIT	1
104	MG-75-02-104	CENTER JOINT COVER	1
105	MG-75-02-105	ADAPTOR	2
106	MG-75-02-106	PLUG	2
107	MG-75-02-107	HEX BOLT	1
108	MG-75-02-108	NORD-LOCK WASHER	1
